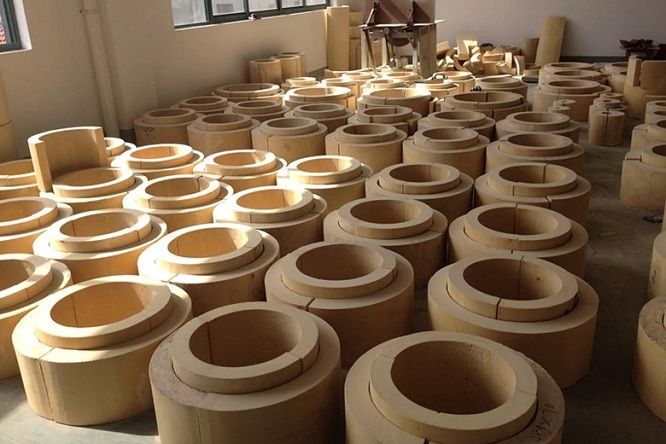

High density PU pipe support is a new kind of foaming polymer with the features of plastic, rubber and softwood. It is created through high speed stirring with the main raw material of isocyanate and polyether added with vesicant, catalyst or flame retardants. The foaming body is a structure like a three-dimensional honeycomb, which is made up of ten thousands of isolated cells. It has low thermal conductivity, high compressive strength, and low water adsorption, it has excellent properties which asphalt-wood products and other pads difficult to compare. It’s ideal material for cold pipe supports and equipment pads. It is used as pipe supports, cradles and equipment pads in petrochemical industry, LNG liquefied gas factory, cold-chain base and central air conditioner both in domestic and foreign.
產品優勢
1) 導熱係數低，保冷絕熱效果優良；
2) 抗壓性高、抗曲性好；
3) 閉孔率高，吸水率低；
4) 火焰阻燃性能優良；
聚氨酯管托
5) 防腐性能強，不霉不蛀；
6) 注模成型、配以機械舟剃囑切割，可滿足不同厚度的保冷設計要求；
Products advantages:
1) Low thermal conductivity, good effect of cold insulation;
2) High compressive and flexural strength;
3) High ratio of closed cell, while with low water absorption;
4) Excellent flame retarding;
5) Strong protection from corrosion, mould and worm eating；
6) Fabricated in molds and NC mechanical cutting in advance, various thicknesses per cold conservation requirements.
技術參數
Technical Data
特性
Property
單位
Unit
技術祝灑旬指嫌達察標
Specifications
密 度
Density
Kg/m
160
250
300
350
450
550
導熱係數
Thermal conductivity
W/m.K
≤0.038
≤0.046
≤0.050
≤0.070
≤0.080
≤0.090
抗壓強度
Compressive strength
MPa
≥1.6
≥2.5
≥4.6
≥7.0
≥10
≥15
吸水率
Water absorption
g/100cm
≤2.0
≤2.0
≤2.0
≤1.5
≤1.5
≤1.5
閉孔率
Close cell ratio
%
≥90
推薦使用溫度
The proposed service temp.
℃
－196～+150
